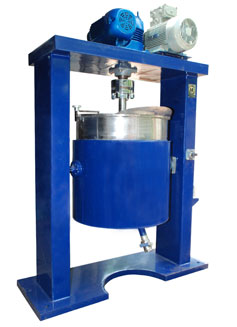

Attritor for ChoCo Mix Milling

For very viscous applications such as chocolate and nut paste, the batch Attritor can be used. It has the advantage of allowing ingredients to be added directly to the grinding chamber without premixing.

A pump can be supplied to aid in discharging the product from the grinding chamber. A gear tilting assembly facilitates easy removal of the agitator shaft for maintenance or cleaning of the grinding tank.

Generally, steel grinding media with a diameter of 4 mm, 5 mm or 6 mm are used.



Capacity Table

Model No.

ATTR-1

ATTR-5

ATTR10

ATTR 30

ATTR 50

ATTR 100

Total Volume, Litres

35

60

90

195

300

600

Mill Base, litres

15

25

37

85

125

250

Media Volume

19

34

45

95

140

280

Power, HP

3-5

5-7.5

5-10

10-20

15-25

20-40
