Beater Blade Mills
|
 |
Beater Blade Mill is used
for the continuous grinding of raw material
into a liquid. The materials primarily processed
are ones with high oil content, such as
pre-dried and roasted cocoa nibs, nuts and
almonds.
The mill, however,
will also grind non-fatty material as long
as it can tolerate the addition of water
or oil to make it into slurry.
|
|
| |
| Design Highlights |

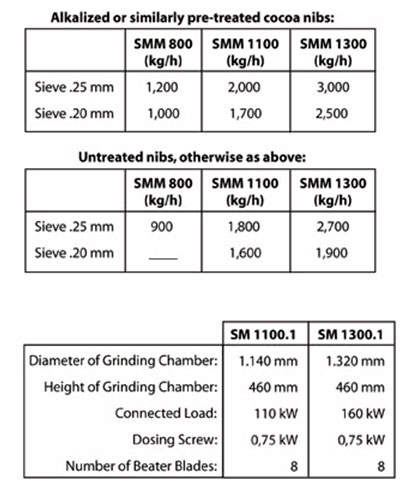

- High throughput, up to
4000 kg/h, at constant particle size.
- Sieves are available in
sizes 0.15 mm to 0.5 mm to achieve different
finenesses
- Easy replacement of blades
and sieve
- Economical operation,
low in cost, high in performance
- Low energy consumption
- Easy access for simple
maintenance
- Uniform consistency of
the ground particles
|
 |
| |
|
|
|
